Skidded construction
26-gauge metal outer building shell with 1-1/2” thick polyurethane foam core (R12 insulation rating)
HDPE potable water holding tanks manufactured using resins that meet Food & Drug Administration (FDA)
Each tank is equipped with a 15” man-way access lid
Equipped with electrical connection for easy installation
Temperature-controlled electric heater
Designed to meet heat loss requirements to maintain an internal temperature of 22C at external temperatures of -40C

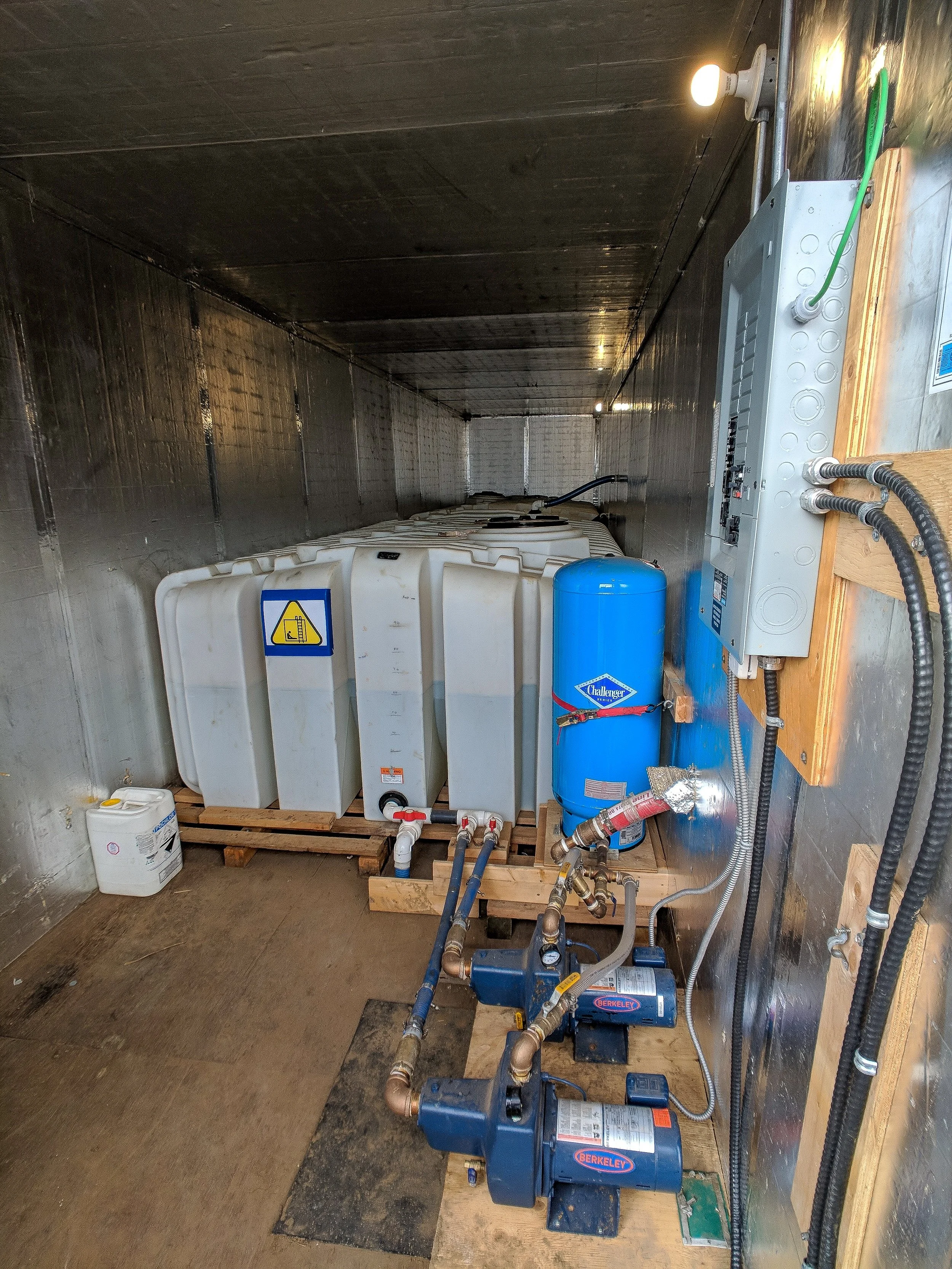

Water storage buildings equipped with Berkley Type C straight centrifugal pumps and Pro-Source Plus steel pressurized water system tanks
SJE Rhombus Tank Alert XT Alarm and OCH portable heater
120/240 Vac, single phase, 60HZ, 200 Amp max circuit breaker
Constructed by certified trades in accordance with 2010 National Building Code, 2010 National Plumbing Code, and 2010 Canadian Electrical Code
